Vegas RUV

Categories: , , Tags: ,
Send an Enquiry About this Product
Share

Color Options

Interior Decor Options

  • Diamondback

  • "/

    Polished Pewter II

Cabinetry Options

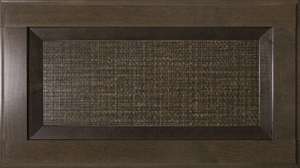

  • Brazilian Cherry

    Brazilian Cherry

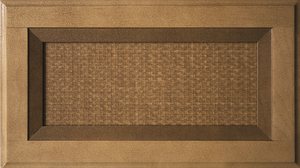

  • Sydney Maple

    Sydney Maple

Exterior Graphics

  • Jazzy Blue HD-MAX®

  • Symphony Red HD-MAX®

Floorplan Specifications

24.1 25.2 25.3 25.4
Year 2017 2017 2017 2017
Brand Vegas RUV Vegas RUV Vegas RUV Vegas RUV
Chassis Ford E-Series Ford E-Series Ford E-Series Ford E-Series
Fuel Type Gasoline Gasoline Gasoline Gasoline
Ford Engine 6.8L V10 305HP 420 lb-ft Torque 6.8L V10 305HP 420 lb-ft Torque 6.8L V10 305HP 420 lb-ft Torque 6.8L V10 305HP 420 lb-ft Torque
Ford GVWR 12,500 lbs 12,500 lbs 12,500 lbs 12,500 lbs
Ford GCWR 18,500 lbs 18,500 lbs 18,500 lbs 18,500 lbs
Wheelbase 188″ 194″ 188″ 188″
Exterior Length 25′-6″ 26′-6″ 26′-6″ 27′
Exterior Height 11′-3″ 11′-3″ 11′-3″ 11′-3″
Exterior Width 94″ 94″ 94″ 94″
Interior Height 82″ 82″ 82″ 82″
Awning Size 16′-5″ 18′ 18′ 18′
Fuel 55 gal 55 gal 55 gal 55 gal
LPG 40.9 lbs 40.9 lbs 40.9 lbs. 40.9 lbs.
Fresh Water 42 gal 39 50 gal 42 gal
Black Water 30 gal 30 30 gal 30 gal
Gray 40 gal 40 41 gal 40 gal
Water Heater 6 gal 6 gal 6 gal 6 gal
Furnace 30,000 BTU 30,000 BTU 30,000 BTU 30,000 BTU
Exterior Storage 63.5 cu. ft. 47 cu. ft. 40 cu. ft. 70 cu. ft.
Trailer Hitch Rating 8,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs
Sleeping Capacity 5 4 4 4
Passenger Capacity 5 5 4 4

MinusPlusConstruction & Exterior

Model 24.1 25.2 25.3 25.4
Ford E-Series Chassis S S S S
Welded Tubular Steel Floor System S S S S
Welded Tubular Aluminum Roof & Sidewall Cage Construction S S S S
Vacu-Bond Laminated Roof, Walls & Floors with Block Foam Insulation S S S S
One-Piece Fiberglass Front Cap S S S S
Premium One-Piece TPO Roof S S S S
Crown Roof S S S S
HD-MAX® Exterior with Graphics Package S S S S
Rotocast Storage Compartments S S S S
Flush Mount Radius Compartment Doors S S S S
Black Frameless Radius Corner Windows S S S S
Side Mounted Power Patio Awning with Integrated LED Lighting S S S S
Slideout Room Awning S S S S
Roof Ladder S N/A S S
Patio Light S S S S
Drop down stairwell entry steps S S S S
Exterior acrylic grab handle S S S S
Entry Door with Deadbolt Lock S S S S
Outside Shower S S S S

PlusAutomotive & Cockpit

PlusInterior

PlusKitchen

PlusBedroom & Bathroom

PlusEntertainment

PlusElectrical & Plumbing

Floor Plans

  • 24.1

    25′-6″ Class A MotorhomesFord E-Series Chassis

  • 25.2

    2016-Axis-RUV-25-2-Class-A-Motorhome-26-Foot

    26′-6″ Class A MotorhomesFord E-Series Chassis

  • 25.3

    2016-Axis-RUV-25-3-Class-A-Motorhome-26-Foot

    26′-6″ Class A Motorhomes
    Ford E-Series Chassis

  • 25.4

    2016-Axis-RUV-25-4-Class-A-Motorhome-26-Foot

    27′ Class A Motorhomes

    Ford E-Series Chassis

Common Specs

Year 2017 Exterior Height 11′-3″
Brand Axis RUV Exterior Width 94″
Chassis Ford E-Series Interior Height 82″
Fuel Type Gasoline Fuel 55 gal
Ford Engine 6.8L V10 305HP 420 lb-ft Torque Water Heater 6 gal
Ford GVWR 12,500 lbs Furnace 30,000 BTU
Ford GCWR 18,500 lbs Trailer Hitch Rating 8,000 lbs

24.1 Axis RUV Class A Motorhomes

Buy My New Coach

2016-Axis-RUV-24-1-Class-A-Motorhome-25-Foot

Motorhome’s Key Features

  • Leatherette Sofa & Removable Pedestal Table
  • Two (2) Twin Beds with Upholstered Covers – Converts to King Size Bed
  • Designer Headboard
  • Solid Surface Bathroom Countertop

Motorhome’s Optional Items

  • 3-Burner Gas Cooktop with Oven & Standard Microwave Oven
  • 12-volt Attic Fan with Cover in Bedroom
  • 15,000 BTU Roof Air Conditioner
  • Holding Tanks with Heat Pads



24.1 Axis RUV Motorhome Specs
Year 2017 Awning Size 16′-5″
Brand Axis RUV Fuel 55 gal
Chassis Ford E-Series LPG 40.9 lbs
Fuel Type Gasoline Fresh Water 42 gal
Ford Engine 6.8L V10 305HP 420 lb-ft Torque Black Water 30 gal
Ford GVWR 12,500 lbs Gray 40 gal
Ford GCWR 18,500 lbs Water Heater 6 gal
Wheelbase 188″ Furnace 30,000 BTU
Exterior Length 25′-6″ Exterior Storage 63.5 cu. ft.
Exterior Height 11′-3″ Trailer Hitch Rating 8,000 lbs
Exterior Width 94″ Sleeping Capacity 5
Interior Height 82″ Passenger Capacity 5
Compare All Floor Plan Specs

25.2 Axis RUV Class A Motorhomes

Buy My New Coach

2016-Axis-RUV-25-2-Class-A-Motorhome-26-Foot

Motorhome’s Key Features

  • Leatherette Jack-Knife Sofa & Removable Pedestal Table
  • Pull-Out Pantry
  • Queen Size Bed

Motorhome’s Optional Items

  • 3-Burner Gas Cooktop with Oven & Standard Microwave Oven
  • 12-volt Attic Fan with Cover in Bedroom
  • 15,000 BTU Roof Air Conditioner
  • Holding Tanks with Heat Pads



25.2 Axis RUV Motorhome Specs
Year 2017 Awning Size 16′-5″
Brand Axis RUV Fuel 55 gal
Chassis Ford E-Series LPG 40.9 lbs
Fuel Type Gasoline Fresh Water 42 gal
Ford Engine 6.8L V10 305HP 420 lb-ft Torque Black Water 30 gal
Ford GVWR 12,500 lbs Gray 40 gal
Ford GCWR 18,500 lbs Water Heater 6 gal
Wheelbase 188″ Furnace 30,000 BTU
Exterior Length 25′-6″ Exterior Storage 63.5 cu. ft.
Exterior Height 11′-3″ Trailer Hitch Rating 8,000 lbs
Exterior Width 94″ Sleeping Capacity 5
Interior Height 82″ Passenger Capacity 5
Compare All Floor Plan Specs

25.3 Axis RUV Class A Motorhomes

Buy My New Coach

2016-Axis-RUV-25-3-Class-A-Motorhome-26-Foot

Motorhome’s Key Features

  • Dream Dinette® Booth
  • Pull-Out Pantry
  • Queen Size Bed with Designer Headboard

Motorhome’s Optional Items

  • 3-Burner Gas Cooktop with Oven & Standard Microwave Oven
  • 12-volt Attic Fan with Cover in Bedroom
  • 15,000 BTU Roof Air Conditioner
  • Holding Tanks with Heat Pads



25.3 Axis RUV Motorhome Specs
Year 2017 Awning Size 16′-5″
Brand Axis RUV Fuel 55 gal
Chassis Ford E-Series LPG 40.9 lbs
Fuel Type Gasoline Fresh Water 42 gal
Ford Engine 6.8L V10 305HP 420 lb-ft Torque Black Water 30 gal
Ford GVWR 12,500 lbs Gray 40 gal
Ford GCWR 18,500 lbs Water Heater 6 gal
Wheelbase 188″ Furnace 30,000 BTU
Exterior Length 25′-6″ Exterior Storage 63.5 cu. ft.
Exterior Height 11′-3″ Trailer Hitch Rating 8,000 lbs
Exterior Width 94″ Sleeping Capacity 5
Interior Height 82″ Passenger Capacity 5
Compare All Floor Plan Specs

25.4 Axis RUV Class A Motorhomes

Buy My New Coach

2016-Axis-RUV-24-1-Class-A-Motorhome-25-Foot

Motorhome’s Key Features

  • Dream Dinette® Booth
  • Pull-Out Pantry
  • Queen Size Bed with Designer Headboard

Motorhome’s Optional Items

  • 3-Burner Gas Cooktop with Oven & Standard Microwave Oven
  • 12-volt Attic Fan with Cover in Bedroom
  • 15,000 BTU Roof Air Conditioner
  • Holding Tanks with Heat Pads



25.4 Axis RUV Motorhome Specs
Year 2017 Awning Size 16′-5″
Brand Axis RUV Fuel 55 gal
Chassis Ford E-Series LPG 40.9 lbs
Fuel Type Gasoline Fresh Water 42 gal
Ford Engine 6.8L V10 305HP 420 lb-ft Torque Black Water 30 gal
Ford GVWR 12,500 lbs Gray 40 gal
Ford GCWR 18,500 lbs Water Heater 6 gal
Wheelbase 188″ Furnace 30,000 BTU
Exterior Length 25′-6″ Exterior Storage 63.5 cu. ft.
Exterior Height 11′-3″ Trailer Hitch Rating 8,000 lbs
Exterior Width 94″ Sleeping Capacity 5
Interior Height 82″ Passenger Capacity 5
Compare All Floor Plan Specs

Specification

New Features for 2017

  • Standard 12-Volt MaxxAir® Attic Fan with FANMATE™ Vent Cover
  • Lighted Step Well
  • Exterior 32″ LED TV on Manual Swivel
  • Bedroom TV now standard in all floor plans

Motorhome’s Key Features

  • 6.8L Triton® V10 Engine
  • 8,000-lb. Trailer Hitch
  • Power Drop-Down Overhead Bunk with Cotton Cloud™ Mattress & Bunk Ladder
  • Leatherette Furniture
  • 3-Burner Gas Cooktop and Convection Microwave Oven
  • 32″ LED TVs in Living Area, Bedroom and Outside
  • Bluetooth® Coach Radio in Bedroom with Exterior Speakers
